Messenger

The tiltrotor Bell/Boeing V22 Osprey is a fantastic aircraft, it takes off with its rotors in heli mode, then accelerates, tilting its rotors forward until its flying as a turboprop plane on just its wings. This gives it 2 or 3 times the speed and range of ordinary helicopters. The penalty is hugely complex transmissions hidden in the wings and all that weight of the rotors and engines at the wing tips.

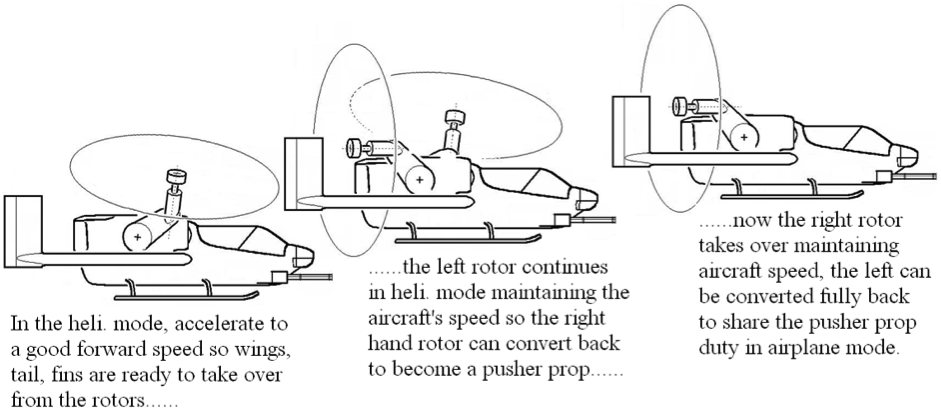

My dream back in 2004 was to bring all that machinery together in the fuselage, nice and compact, tilt the rotors back as a pusher prop plane, easy! This is the way it was, and still is, supposed to work.....

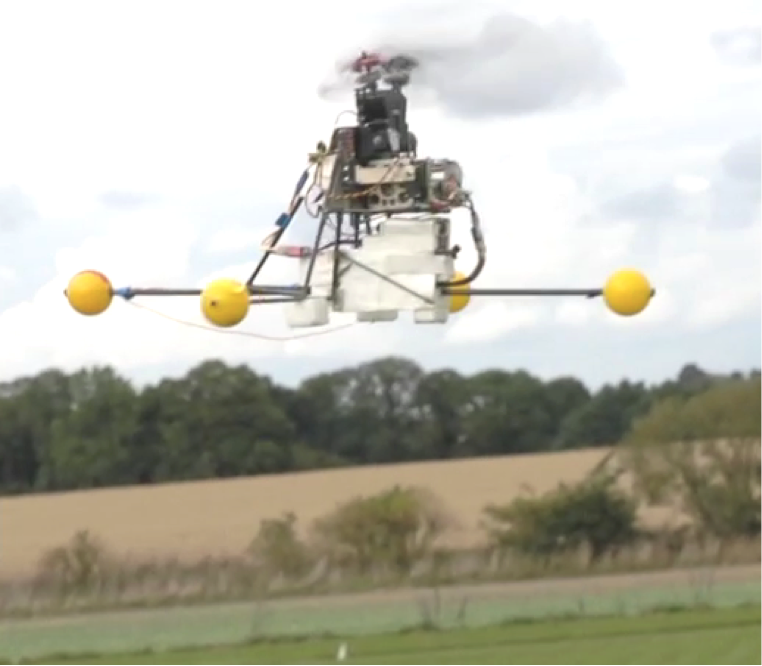

So into the garage, clear some space, start knocking stuff together. Whisk I, and Whisk II were just static mock-ups, named Whisk because they used the innards of an electric food mixer. Whisk III used proper RC components and a lot of balsa, took off and shattered into a collection of splinters. Whisk IV became more and more robust after each disaster.  But I couldn’t get it to hover, even with tethers it was hopeless.

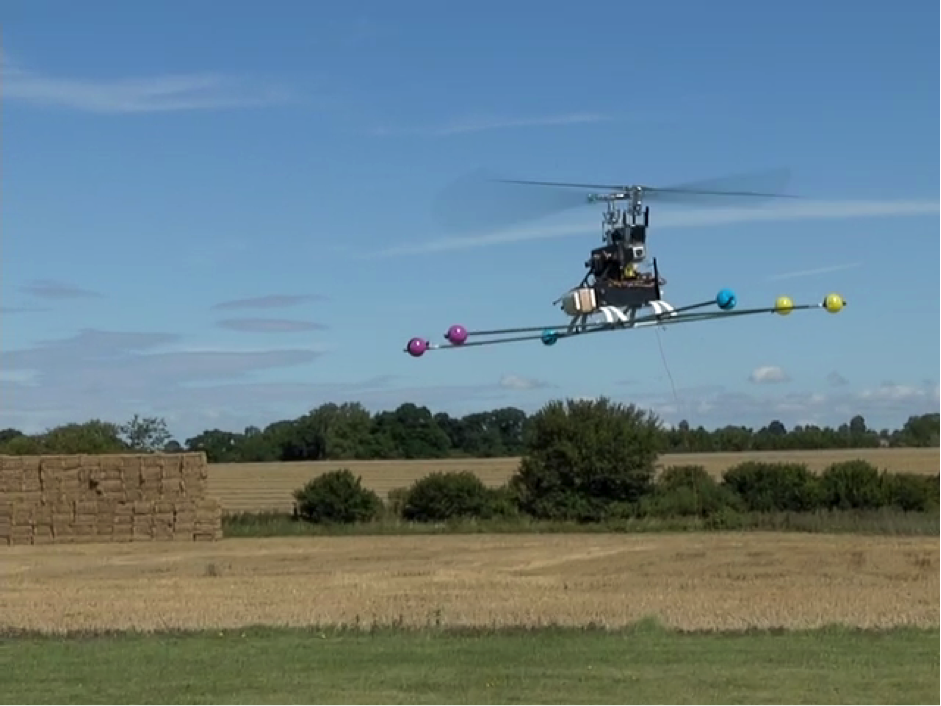

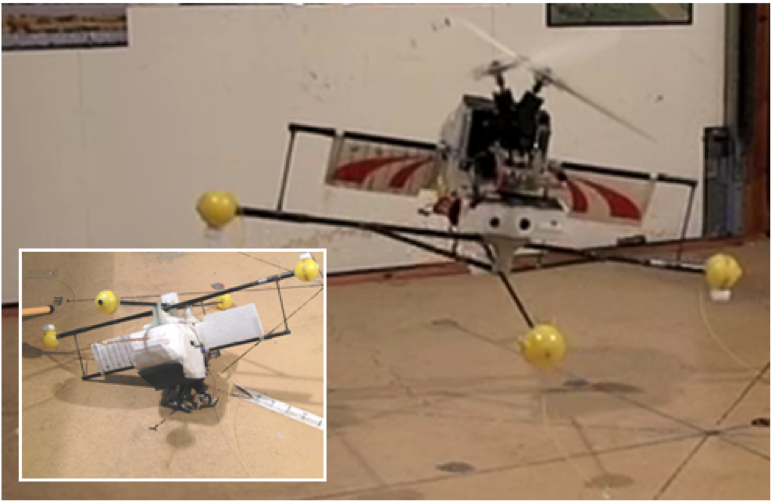

For Whisk V the collective-only rotor heads (just Raptor tail rotors) were modified by adding homemade, compact fly bars, small enough not clash with the meshing rotors. Seems much better but I can’t get it to hover... come to think of it I couldn’t hover a proper RC helicopter.

Time to go to the professionals: so in the spring of 2010 somewhat nervously I took Whisk V to PHSF, me for a campaign of lessons learning to hover the school’s Raptor 30s, and Whisk V to be checked out and flight tested.

Paul masters Whisk from the first but after a number of sessions to trim and get the best out of it, advises that this collective-pitch-only design was marginal at best.

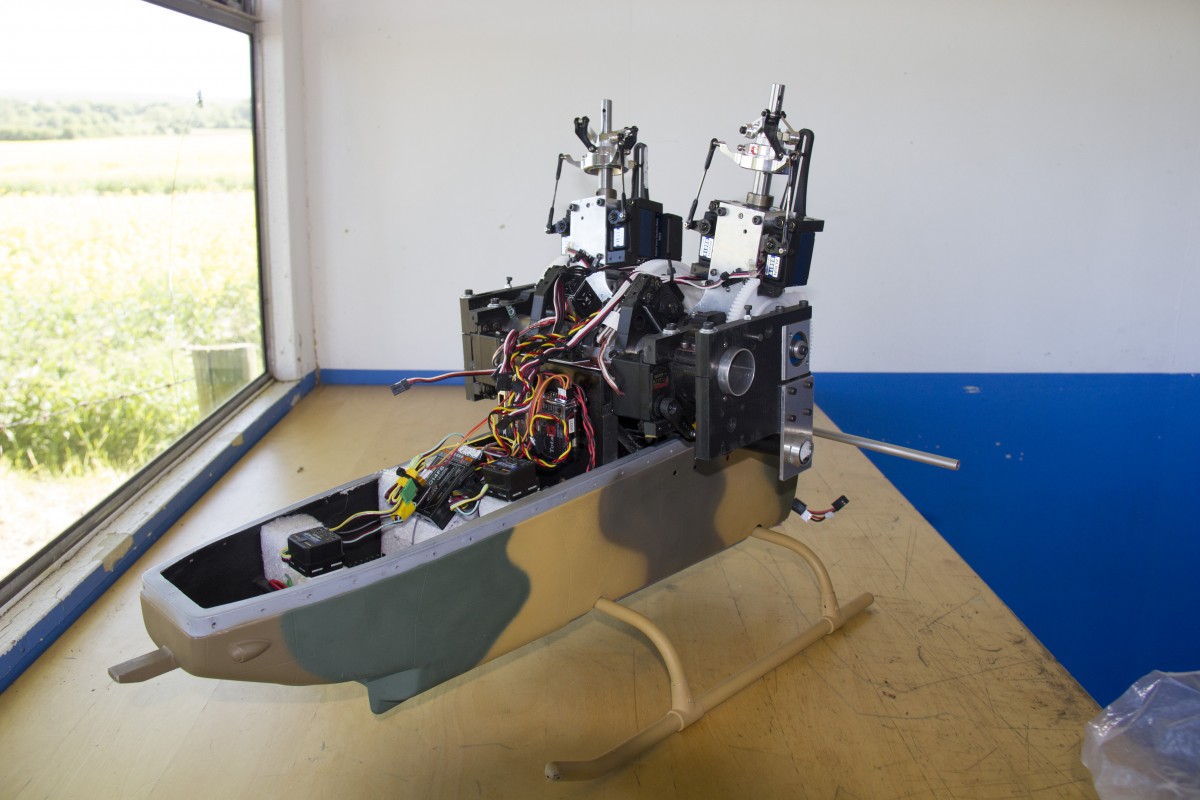

So back to the garage (now a reasonable workshop) for a complete rethink, the result is Messenger: and test flying restarts in May 2011. This frame shows the full cyclic head on each mast, no fly bars, and 42cm blades.

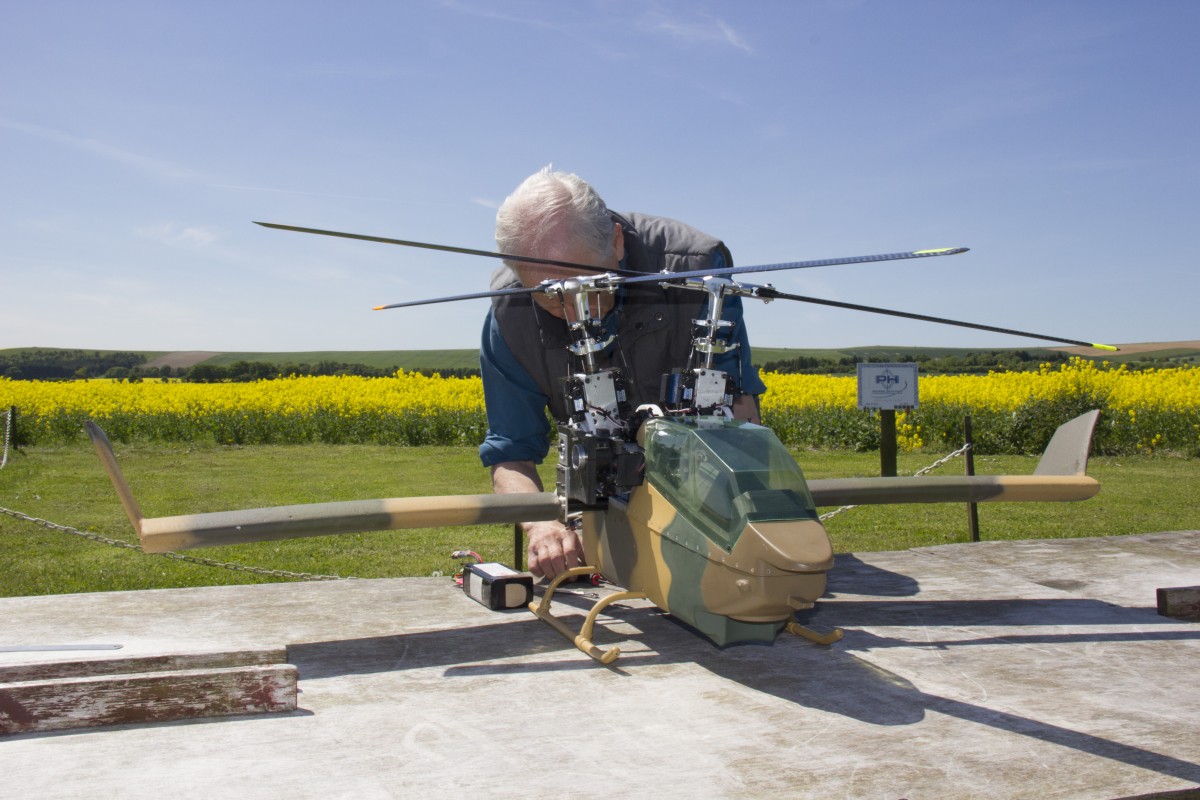

To  my eyes Messenger flies beautifully, but after many mods and test flying sessions, Paul chews over the problem and advises me to increase the blade size to get some decent control authority where its needed.

For me that was a big issue: not at all scale to my thinking, but what the hell, Paul’s the test pilot.

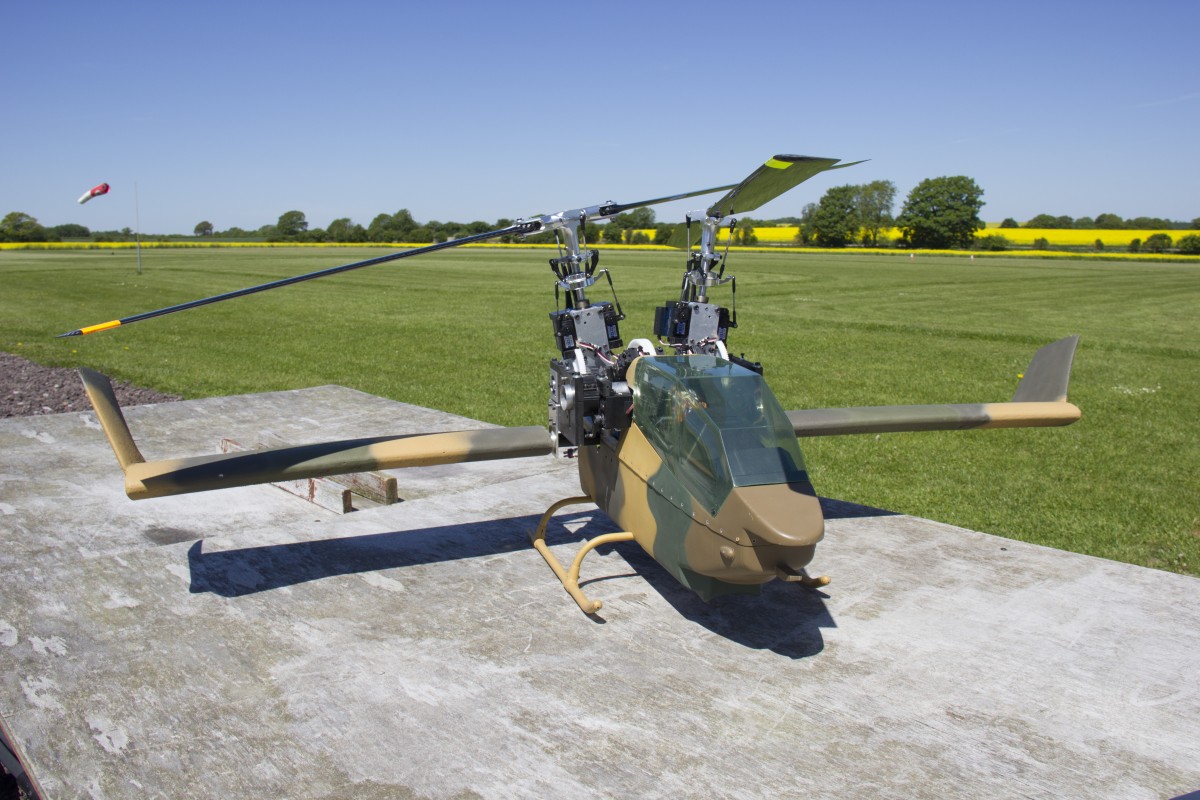

So I fit 55cm blades. Paul is right, at last it flies like a proper helicopter. Absolutely brilliant. And just as good with wings on as well.

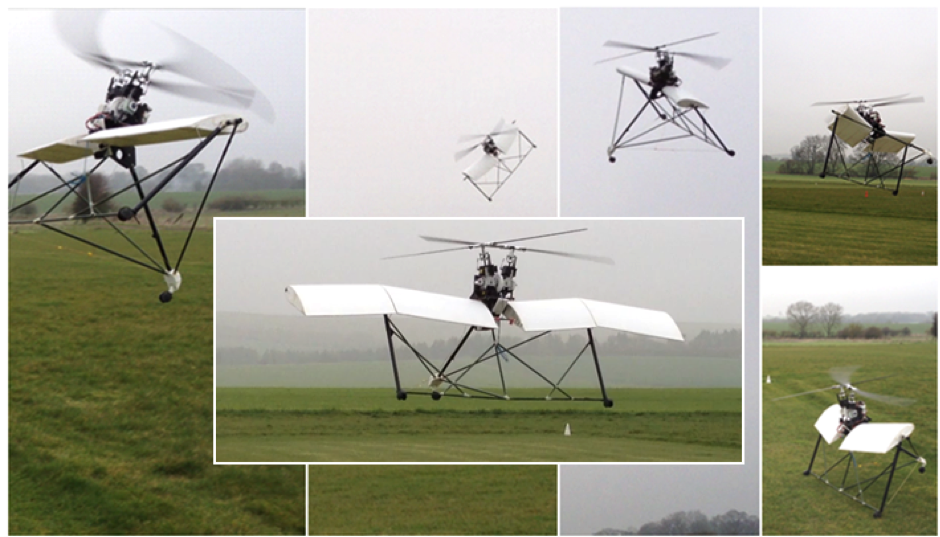

Over the winter and into Spring 2012 Messenger proves robust and able to handle a range of wings with its ungainly temporary undercarriage that eventually should allow take-off just in the pusher-prop plane mode...

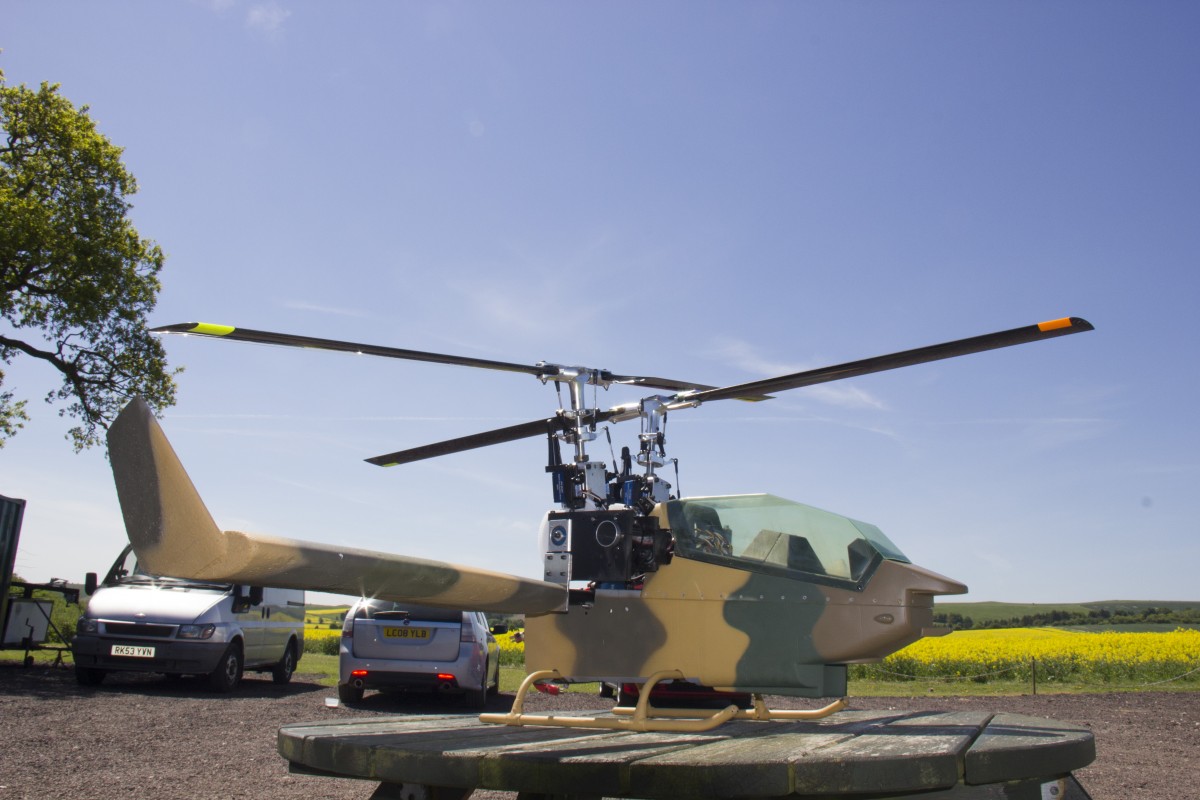

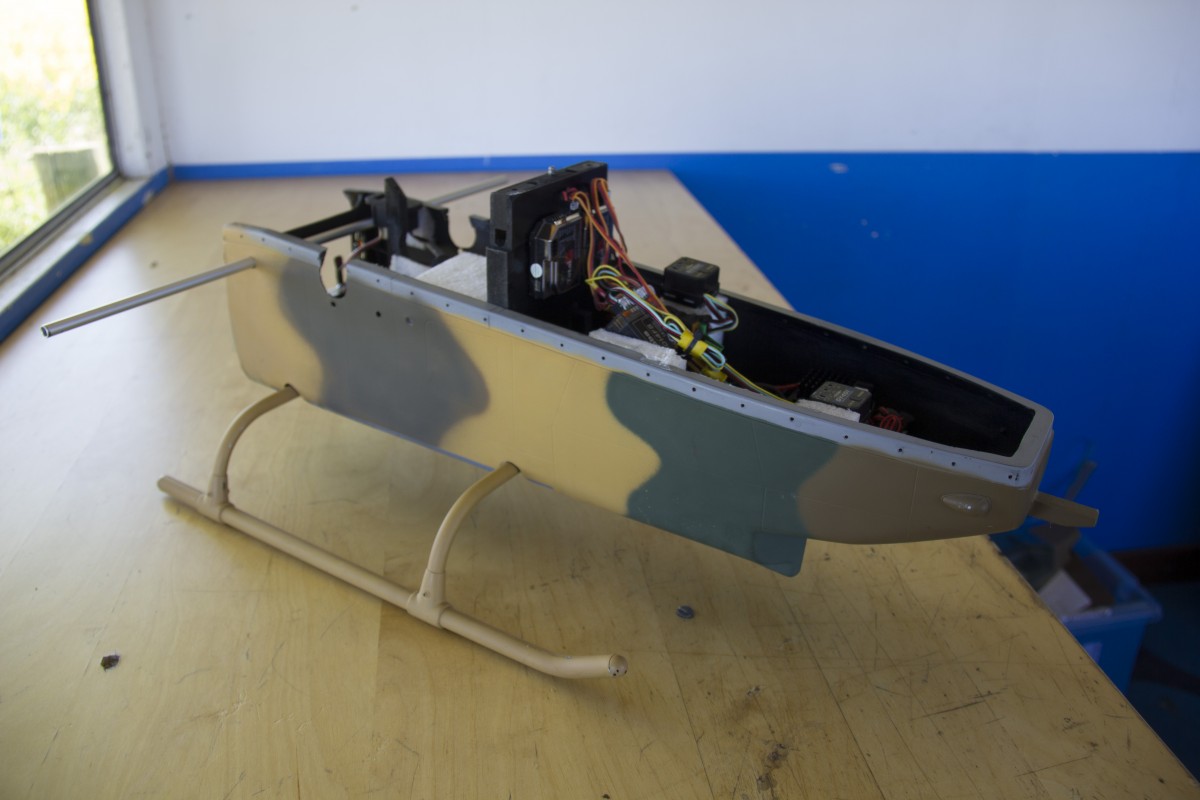

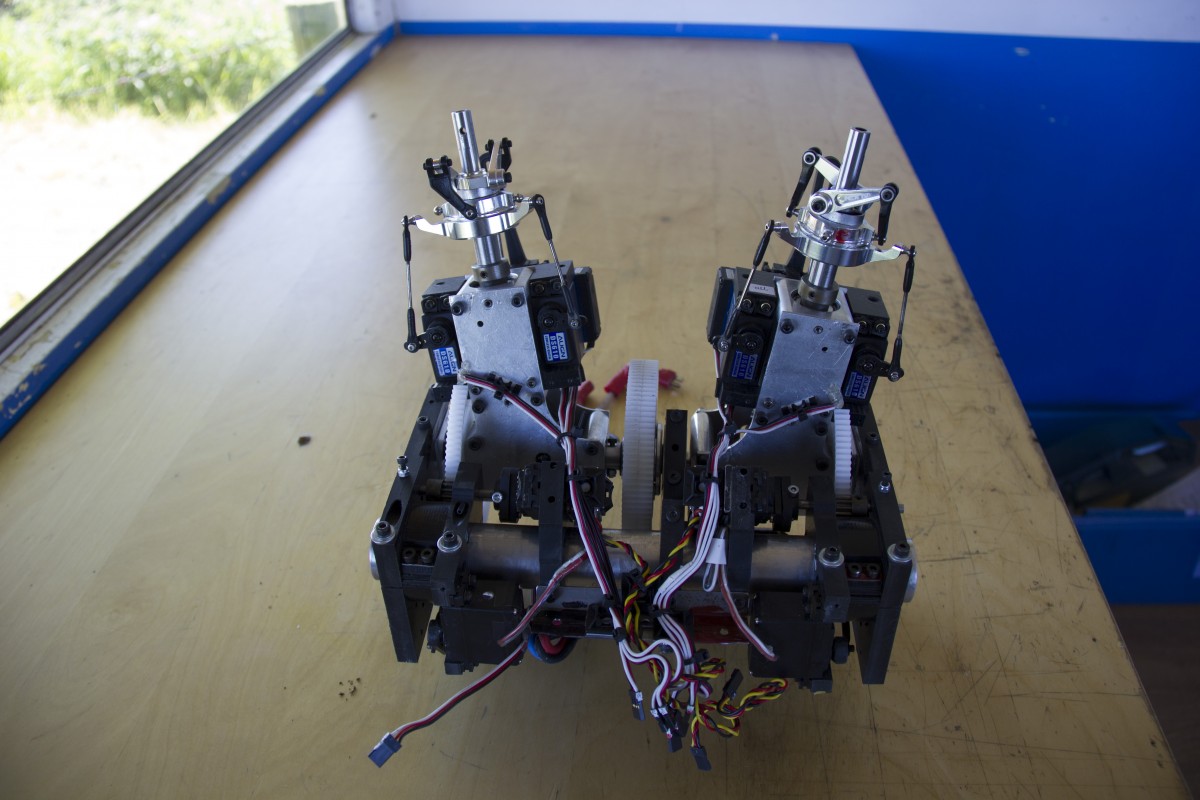

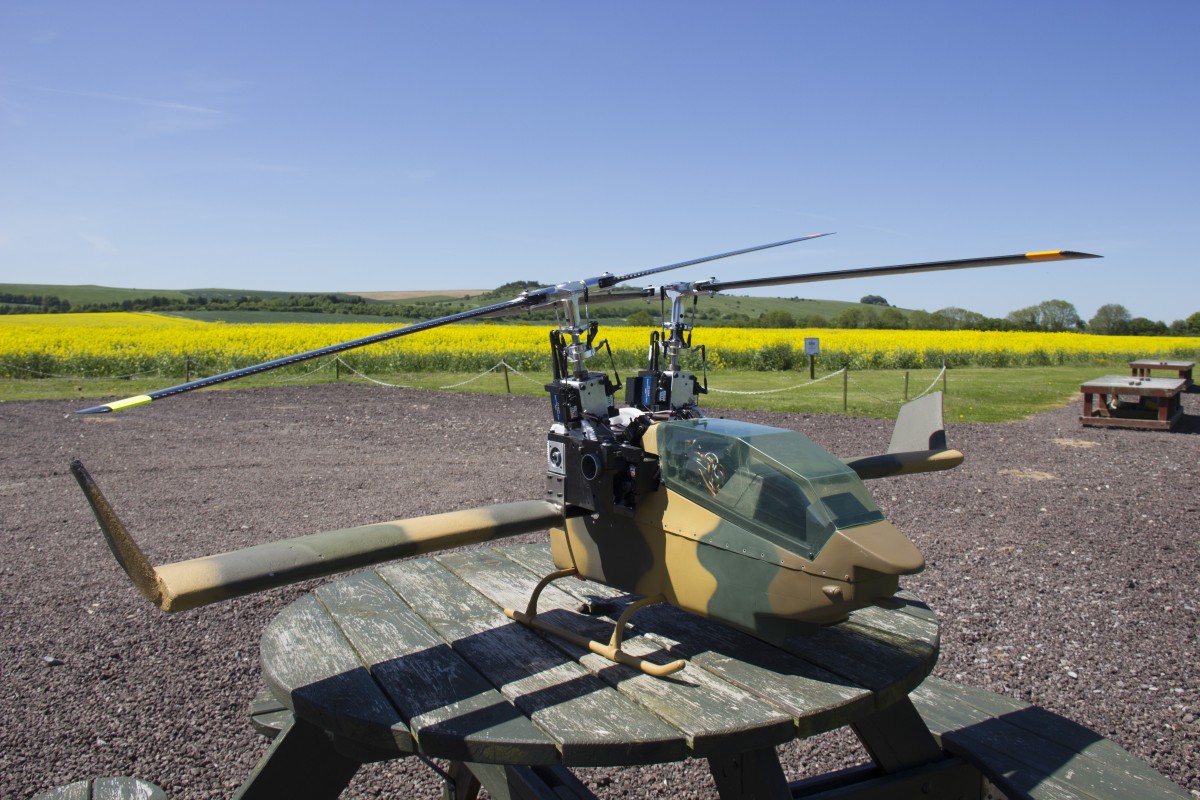

Test flying stopped until beginning of 2013 when Messenger II emerged, with its mechanics much slimmer, and in May for an international conference for full size rotorcraft (AHS Forum 69, in Phoenix, Arizona) it was kitted out to look as close to the “dream” as possible: here I am at my booth in the huge exhibition hall extolling its hoped for virtues....

More Forum 69 photos of what Bell, Boeing, Sikorsky and AgustaWestland are up to here:

See my website for more details....

Thanks Paul, always wondered what test pilots did!
